Description

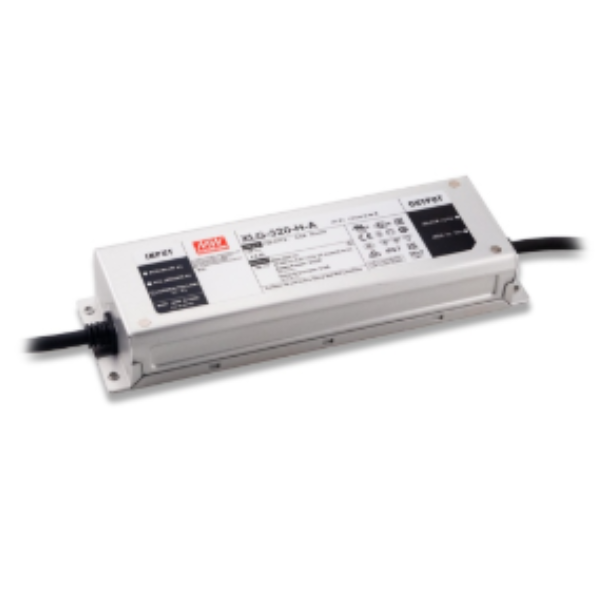

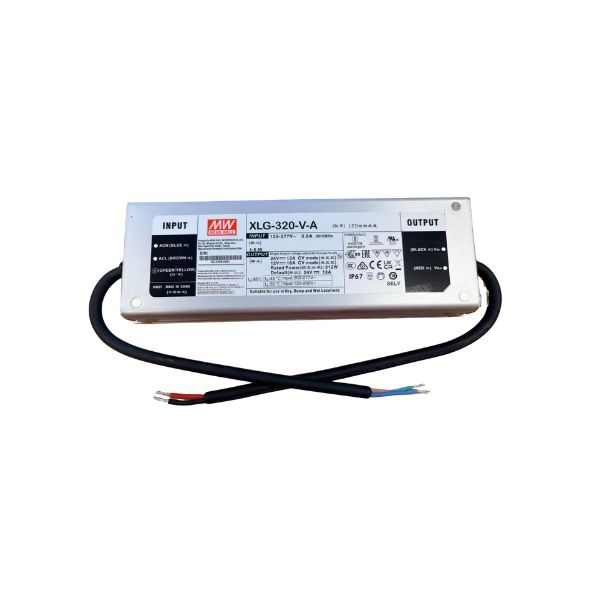

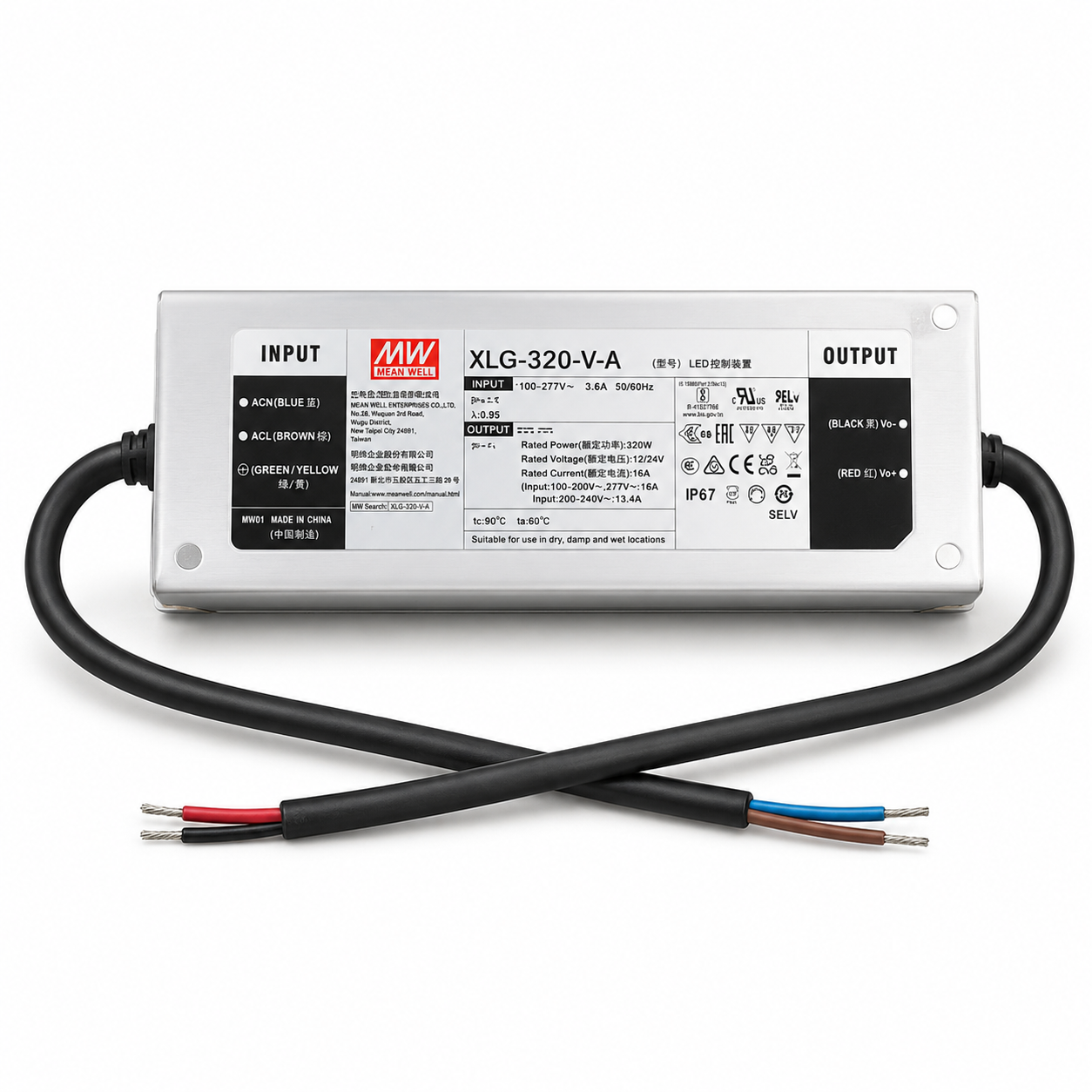

The Mean Well XLG-320 12V 220W / 24V 320W LED Driver IP67 is a high-capacity, dual-rated constant power supply designed for demanding commercial lighting projects. It provides versatile output configurations, delivering 220W at 12V DC or up to an adjustable 320W output at 24V DC. Additionally, its industrial-grade metal enclosure boasts an IP67 waterproof rating for continuous operation in harsh exterior conditions. This non-dimmable driver delivers maximum energy efficiency and uncompromised circuit protection.
Technical Specifications & Features
Specifically, here are the official Mean Well XLG-320 specifications:
- Model Code: Mean Well XLG-320-V-A
- Dimensions: 246mm (Length) x 77mm (Width) x 39.5mm (Height)
- Output Ratings: 12V DC (220W Max) OR Adjustable 24V DC (320W Max)
- IP Rating: IP67 (Fully Weatherproof & Waterproof Encapsulation)
- Dimming Type: Non-Dimmable
- Housing: Heavy-Duty Aluminium Heat-Sink Case
- Protections: Over-Current, Over-Voltage, Over-Temperature, and Short Circuit Protection
Key High-Power & Architectural Applications
Furthermore, this high-wattage Mean Well driver is ideal for large-scale outdoor signage, high-density LED strip runs, sports lighting, and commercial facade illumination. Therefore, you can power long low-voltage lighting runs without voltage drop or thermal stress.
Care & Maintenance Instructions
First, ensure qualified electricians perform installation and set voltage parameters correctly. However, you should clean the outer metal heatsink gently during routine site checks to maintain optimal passive heat distribution.
Frequently Asked Questions
Q: Can this XLG-320 driver power both 12V and 24V LED products?
A: Yes, it supports 12V DC output up to 220W or can be adjusted for 24V DC systems up to 320W maximum power.
Q: Is this driver suitable for outdoor commercial installations?
A: Yes, its heavy-duty IP67 aluminium casing is built specifically to withstand rain, dust, and temperature fluctuations.
Q: Is this Mean Well driver stocked in Australia?
A: Yes, genuine Mean Well XLG drivers are stocked and dispatched directly by Lights & Lamps Australia from our Melbourne warehouse hub with fast delivery.
