Description

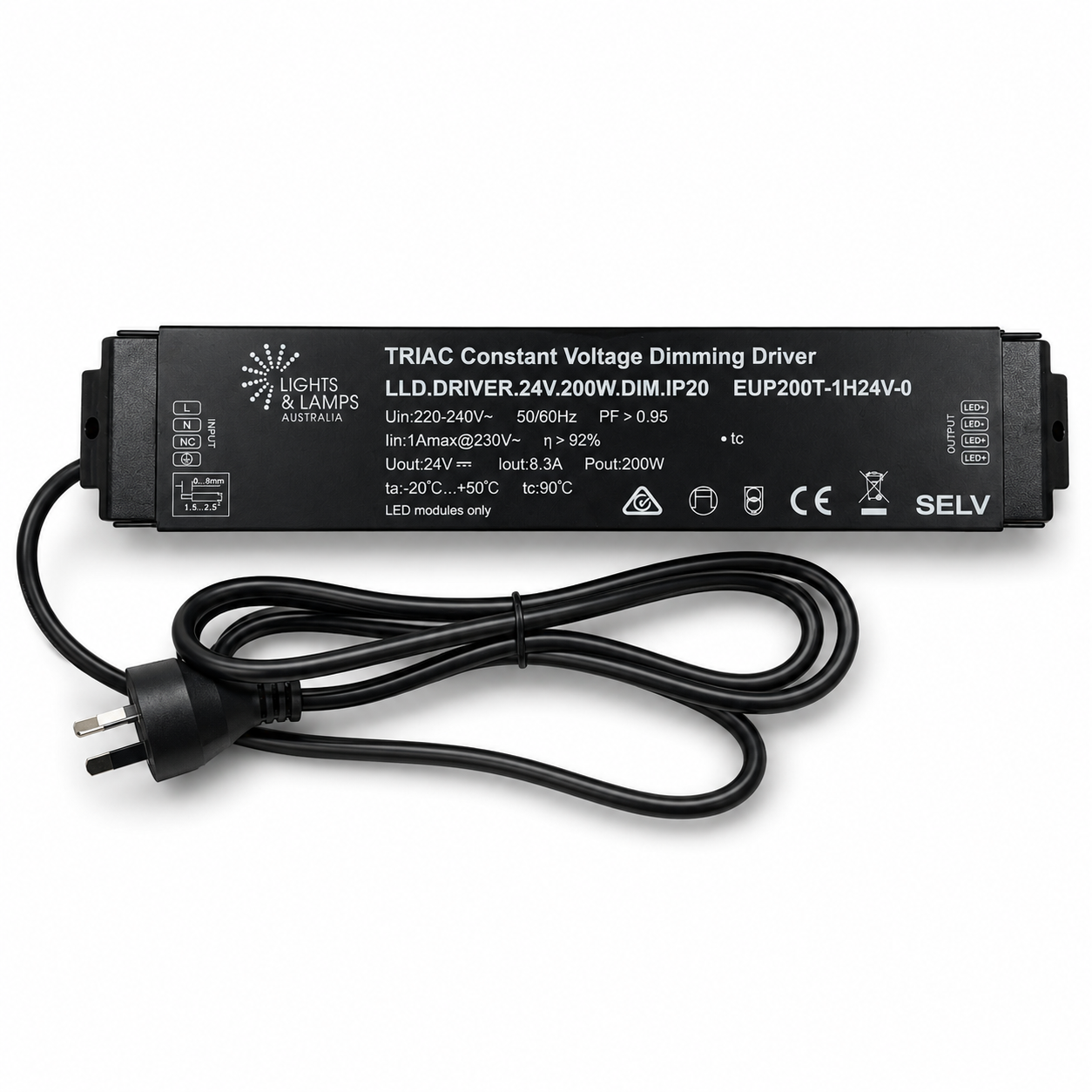

The 24V 200W Triac Dimmable LED Driver IP20 Indoor delivers high-capacity, flicker-free dimming for extensive 24V LED strip lighting layouts. Compatible with standard Phase-Cut Triac wall dimmers, it provides precise, linear dimming control from subtle ambient glow up to full 200W brightness. Additionally, its heavy-duty anodised aluminium body delivers superior heat dissipation to protect internal driver components. Consequently, this indoor driver includes a pre-wired Australian flex and plug to ensure quick, simple installation.
Technical Specifications & Features
Specifically, here are the core specifications for this 200W Triac driver:
- Input Voltage: 220–240V AC, 50Hz
- Output Voltage & Wattage: 24V DC Constant Voltage (200W Output Capacity)
- Dimming Compatibility: Triac Dimmable (Phase-Cut Wall Dimmers)
- Protection Rating: IP20 (Indoor Application)
- Housing & Connection: Durable Aluminium Case with Pre-Wired AU Flex & Plug
- Dimming Range: Smooth 0% to 100% Flicker-Free Dimming
- Built-In Protections: Short Circuit, Over-Load, Over-Voltage, and Over-Temperature Cut-offs
Key Commercial & Residential Applications
Furthermore, this high-wattage 200W dimmable driver is ideal for large open-plan living areas, commercial restaurant coves, hotel corridors, and architectural linear pendants. Therefore, you can power extended runs of 24V LED strip lights from a single dimmable power supply unit. Similarly, electricians can mount this compact driver neatly inside ceiling cavities or cabinetry.
Care & Maintenance Instructions
First, electricians must mount the driver with adequate ventilation space to support natural heat dissipation. However, you should dust the aluminium body with a dry microfibre duster to keep cooling fins clear during annual maintenance.
Frequently Asked Questions
Q: Can I connect this 200W driver to a standard rotary wall dimmer?
A: In addition, manufacturers design this unit for seamless dimming compatibility with standard Australian Triac Phase-Cut wall dimmers.
Q: Does this driver come with a lead and plug?
A: Yes, each unit comes complete with an Australian flex and 3-pin plug for quick connection.
Q: Does Lights & Lamps Australia dispatch this product locally?
A: Yes, our team dispatches all LED power supplies directly from our Melbourne warehouse hub with fast Australia-wide delivery.
