Description

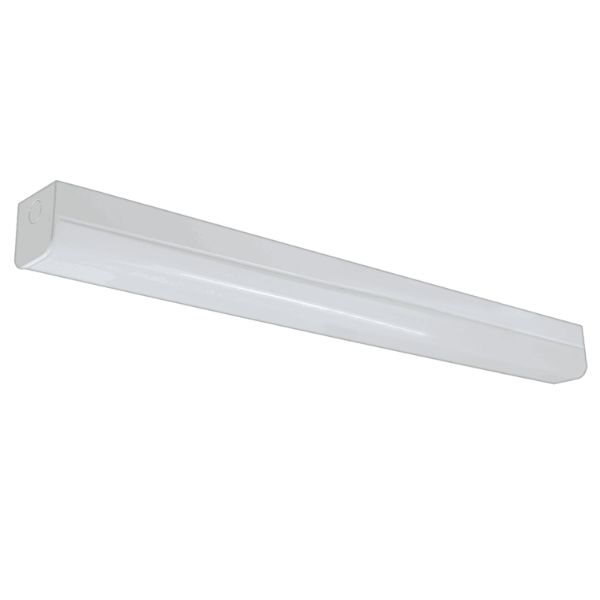

The Commercial 1.2M LED Batten (Diffused Profile) is a heavy-duty, high-performance lighting solution for commercial and industrial spaces. Featuring a standard 67mm profile with a high-grade frosted diffuser, it delivers smooth, ultra-wide 220° illumination without visible LED hot spots. Additionally, its integrated 3CCT colour-switching capability allows you to select between 3000K Warm White, 4000K Neutral White, and 6000K Daylight to suit different work environments. Powered by a robust 40W COB Epistar LED source, this batten produces an impressive 3650 lumens of bright, energy-efficient light.
Technical Specifications & Features
Specifically, here are the core electrical and physical details for this 40W LED batten light:
- Dimensions: 1200mm (Length) x 65mm (Width) x 67mm (Height)
- Input Power: 40W
- Luminous Flux: 3650 Lumens
- Colour Temperature: 3CCT Selectable (3000K / 4000K / 6000K)
- Light Source: High-Efficiency COB Epistar LED
- Beam Angle & CRI: 220° Extra-Wide Beam Angle with CRI > 80
- Housing & Cover: Durable Aluminium Heat-Sink Base with Frosted PC Diffuser
- Finish Colour: Clean White
- IP Rating: IP20 (Indoor Use Only)
- Dimmable: Non-Dimmable
- Installation Features: Central input power cable hole with built-in terminal block for quick commercial mounting
Key Commercial & Industrial Applications
Furthermore, this 1.2m diffused LED batten is ideal for commercial offices, warehouses, workshops, schools, retail storerooms, and multi-level parking garages. Therefore, you can install it on ceilings or walls to provide uniform, glare-free light across large task areas.
Care & Maintenance Instructions
To preserve maximum light output and effective aluminum heat dissipation, please wipe the frosted diffuser and metal housing regularly with a dry microfibre duster. However, you should ensure mains power is isolated prior to cleaning and avoid using harsh liquid solvents on the PC cover.
Frequently Asked Questions

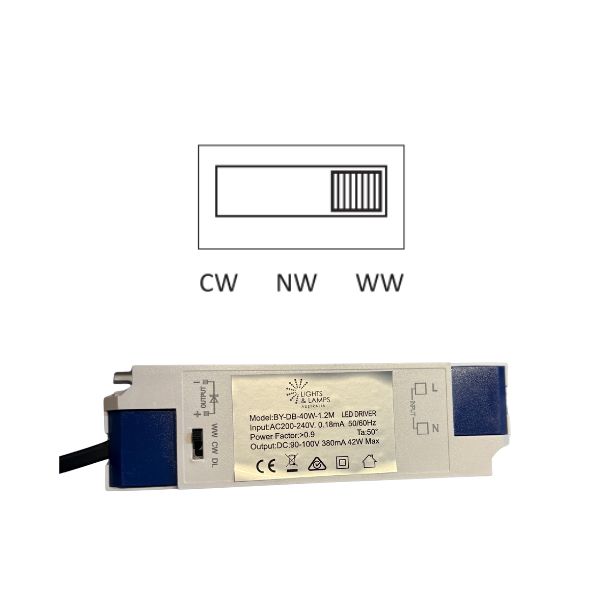

Q: How do I switch the colour temperature on this 40W LED batten?
A: You can set your desired colour temperature (3000K Warm White, 4000K Cool White, or 6000K Daylight) using the built-in CCT toggle switch during installation.
Q: What is the advantage of the diffused profile compared to slimline battens?
A: The standard 67mm height profile and curved frosted diffuser provide a wider 220° beam distribution, reducing glare and harsh shadows in commercial spaces.
Q: Is this commercial lighting product dispatched locally from Australia?
A: Yes, all LED battens are tested and dispatched directly by Lights & Lamps Australia from our Melbourne warehouse hub with fast Australia-wide delivery.
